Best MPPT newest automatic solar pump driver 380V 3 phase

FOB Reference Price:Get Latest Price
US $280-400 / Pieces | 1 Set/Sets Automatic solar pump driver (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Jumbo
Model Number:
SPI300-4GB-S2
Output Power:
4KW
Output Type:
Triple
Size:
245*150*177
Weight:
5KG
Input Voltage:
150V/400V
Output Voltage:
220V/240V
Type:
DC/AC Inverters
Output Frequency:
0~50HZ/0~60HZ
Output Current:
16A
Product name:
Automatic solar pump driver
other name:
newest pump driver 380V 3 phase
Running mode:
MPPT or CVT
frequency:
0~50HZ/0~60HZ
life time:
10 years
color:
Gray-black/White
Applicable Pumps:
4KW
G.W:
5.5KG
package:
pearl wool and paper carton
MPPT efficiency:
97%
Supply Ability
Supply Ability:
2000 Set/Sets per Month newest pump driver 380V 3 phase
Packaging & Delivery
Packaging Details
packing of Best MPPT automatic pump driver
1.each Jumbo is packed inside of paper carton and protected by pearl wool.
2.every six sets or three sets of Jumbo are packed in one bigger carton.
Port
ShenZhen
Lead Time :
sample:7 days;quantity order:15 days

Best MPPT newest automatic solar pump driver 380V 3 phase







Introduction of Jumbo Automatic solar pump driver



Solar pumping system consists of four parts: solar panels, solar pumping inverter, Three phase AC pump and water storage device. The Jumbo Automatic solar pump driver converts DC power produced by solar panels to AC power which can drive AC motor to pump water from borehole, river, lake etc. into storage device.



Jumbo Automatic solar pump driver system applied for domestic water, agricultural irrigation, forest irrigation, desert control, pasture animal husbandry, rural town and village water supply and so on.



The solar pumping system is the best way for nongrid area to get the water. The Jumbo Automatic solar pump driver fulfills concept of low carbon, energy conservation, environment protection. It will be helpful to improve the living standard in water-deficient area.



Why choose Jumbo Automatic solar pump driver ?



More than 10years experience of designing Jumbo Automatic solar pump driver

More than 5 years foreign trading and customer service

We have exported our products to more than 25countries all over the world

We have a very professional team to accept your OEM and ODM orders

We offer 24 hours services

Full frequency inverter brings efficiency, energy-saving and hope

Let's make life better



Shipping of Jumbo newest pump driver 380V 3 phase



Fedex/DHL/UPS/TNT for samples, door to door

By air or by sea for batch goods

Customers specifying freight forwarders

Delivery time: 3~7 days for samples, 15~25days for bulk orders



 solar pump drive payment and delivery (1)



Payment Terms of Jumbo newest pump driver 380V 3 phase

T/T, Western Uion, Money Gram, Paypal or Cash

MOQ:1 set

Warranty: 18 months



Technical Specification of Jumbo newest pump driver 380V 3 phase



Recommended MPPT voltage range

90 ~350V DC input for 110V/160V/220V pumps, 0.75kw  to 1.5kw

200~400VDC for 220VAC/240V pumps with 0.75 Kw  to 4kw.

250~800VDC, for 380VAC pumps with1.5kw to 45kw

Recommended input voltage

170 Vmp DC for 110V AC pumps. 260Vmp DC for 160V AC pumps.

350Vmp DC for 220V AC pumps, 620Vmp DC for 380V AC pumps

Motor type

Control for permanent magnet servo motor and asynchronous motor pumps.

Maximum DC power input

400VDC for 220AC output /800VDC for 380V AC output

Rated output voltage

3-phase , 110V/160V/220V. 3-phase, 220V/380V/480V

Output frequency range

0~50/60Hz

MPPT efficiency

98%,

Ambient temperature range

(G-type inverter with submersible pumps, and P type for general pumps.

Solar pump control special performance

MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated  calculating.

Protection function

Phase loss protection, phase short circuit protection , ground to phase circuit protection , input and output short circuit protection. Stall protection

Protection degree

IP20, Air  force cooling

Running mode

MPPT  or CVT

Altitude

Below 1000m; above 1000m, derated 1% for every additional 100m.

Standard

AC input  backup circuit

CE, Design based on vector control drive SPI300 and SPI320 series, more specification please refer to SPI300 or SPI320 vector control drive operation manual

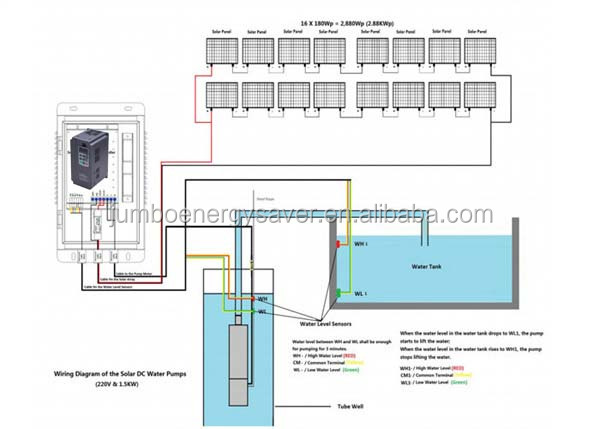

Installation Wiring Diagram of Jumbo newest pump driver 380V 3 phase



solar pump drive installation pictures (3)solar pump drive installation pictures (6)



The reference show of Jumbo Best MPPT automatic pump driver



spi300 solar pump drive (11)spi300 solar pump drive (7)

solar pump inverter references (19)solar pump inverter references (10)

solar pump inverter references (9)



FAQs of Jumbo Best MPPT automatic pump driver



Q 1. What's the payment of Jumbo Best MPPT automatic pump driver  ?

A. We accept TT,Western Union,Paypal,MoneyGram.



Q 2.How's the delivery time of Jumbo Best MPPT automatic pump driver  ?

A. Is due to order quantity, usually it will take about 3-7days for sample production,

Q 3.Tell me the standard of package?

A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.



Q 4.Would you accept to use our logo ?

A.It's no problem to do OEM.

Q 5.We want to know month capacity.

A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs  and big capacity near 500pcs.

Q 6.Where is your market?

A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.


Q 7.How about the lifetime?

A:The life time for inverterl is 15-20years.
