3phase AC submersible solar pump inverter with soft star mppt vfd

FOB Reference Price:Get Latest Price
US $150-250 / Pieces | 1 Set/Sets submersible solar pump inverter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Jumbo
Model Number:
SPI300-1K5GB-T4
Output Power:
1.5KW
Output Type:
Triple
Size:
185*125*159
Weight:
3.5KG
Input Voltage:
250V to 800V
Output Voltage:
380V-440V
Type:
DC/AC Inverters
Output Frequency:
0~50HZ/0~60HZ
Output Current:
3.7A
Product name:
submersible solar pump inverter
other name:
pump inverter with soft star mppt vfd
Running mode:
MPPT or CVT
frequency:
0~50HZ/0~60HZ
life time:
10 years
color:
Gray-black/White
Applicable Pumps:
1.5KW
G.W:
4KG
package:
pearl wool and paper carton
MPPT efficiency:
97%
Supply Ability
Supply Ability:
2000 Set/Sets per Month pump inverter with soft star mppt vfd
Packaging & Delivery
Packaging Details
packing of 3phase AC submersible solar pump inverter
1.each Jumbo is packed inside of paper carton and protected by pearl wool.
2.every six sets or three sets of Jumbo are packed in one bigger carton.
Port
ShenZhen
Lead Time :
sample:7 days;quantity order:15 days

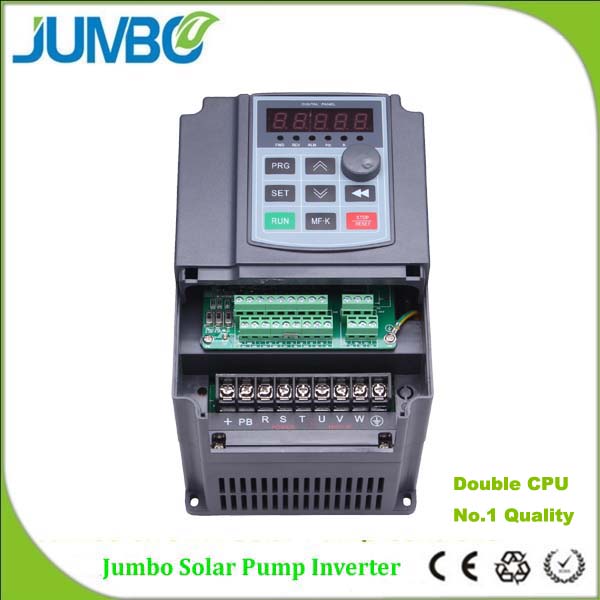

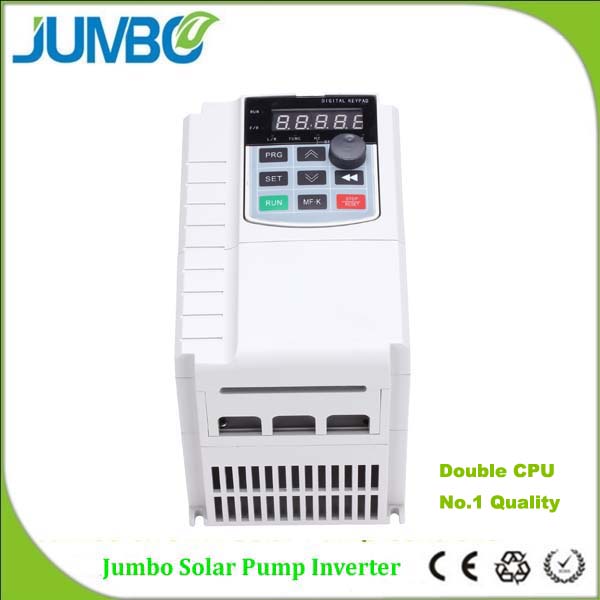

3phase AC submersible solar pump inverter with soft star mppt vfd

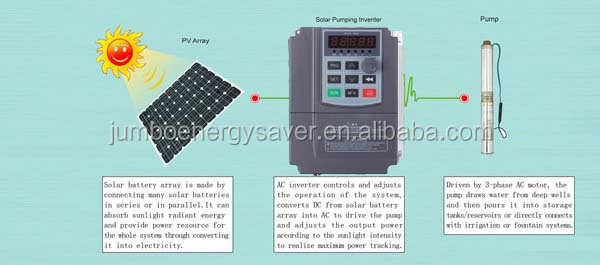

Introduction of Jumbo submersible solar pump inverter



The Jumbo submersible solar pump inverter designed by our company is the core part of the photovoltaic system. The inverter converts DC power into AC power ,and be widely used in PV solar station, Wind power station, Wind/solar/oil/battery hybrid power generating system and household PV system etc.



High inverting efficiency , superior performance, Jumbo submersible solar pump inverter offers reliability for new energy generation in those area which lack of/without electricity ,such as traffic-inconvenience area , mountainous area , pastoral area , frontier , island etc .



Jumbo submersible solar pump inverter has adopted the international lead circuit design with the advantage of small size, light, stable, and high conversion efficiency.



Characteristics of Jumbo submersible solar pump inverter



1.Perfect protection functions: Alarming and protecting for output overloading, short circuit , Anti-reverse connection , over/under voltage,overheat etc.

2.LCD display : Monitoring and displaying the DC voltage , DC current , invert output-three phase voltage , invert output -three phase current , commercial voltage, output frequency,current load power etc. It could realize displaying and alarming of fault information synchronized. With function of LCD display alarming and audible alarming.

3.Parameter setting : language choosing and partial parameter setting through code

4.Remote communication :RS232 communication interface could realize remote monitoring to the operation of equipment .

5.With pure sine wave output , good transient response , Low waveform distortion, high invert efficiency , steady output voltage ,with good EMI index

6.High reliability , high efficiency , Anti-vibration .

solar pump drive advantages 1



Parameters of Jumbo submersible solar pump inverter



Jumbo

Model(Jumbo-SPI)

0.75KW

1.5KW

2.2KW

3.7KW

5.5KW

Power of Controlling(W)

750

1500

2200

3700

5500

Power of Solar Arrays(KW)

0.975

1.95

2.86

4.81

7.15

MPPT Range (VDC)

330~780

MPPT Number

1

Net Weight(KG)

2.2

2.2

2.2

3.6

3.6

Gross Weight(KG)

2.7

2.7

2.7

4.3

4.3

Max Output Current(A)

2.5

3.7

5

8.5

13

Output AC Voltage(V)

3 Phase /110V/160V/220V.

3 Phase /220V/380V/480V

Matched Pump Frequency Range (Hz)

0-50/60Hz

Max Conversion Efficiency

>97.8%

MPPT Efficiency

>97%

Operating Temperature(ºC)

-25~+60

Noise[dB(A)]

<50dB

Night Consumption(W)

0

If Electrical Isolated

Transformerless

Cooling Type

Natural&fans

Protection Level

IP20

Communication Type

RS485



Packaging & Delivery of Jumbo pump inverter with soft star mppt vfd



Packaging Details: Jumbo pump inverter with soft star mppt vfd : standard export packing, carton or crate
Sample: 1-3 days, according to customer's quantity
Bulk Order: Less than 2 weeks

Delivery Detail:   Less than 2 weeks for all Jumbo pump inverter with soft star mppt vfd



solar pump drive payment and delivery (1)

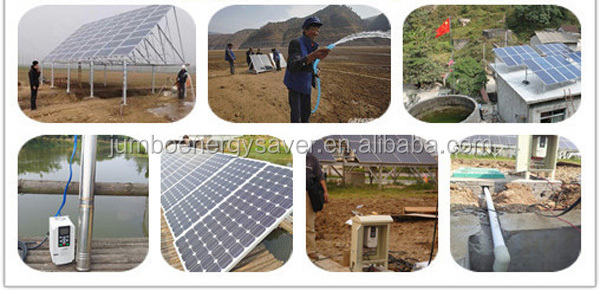

Installation picture of Jumbo pump inverter with soft star mppt vfd



solar pump drive installation pictures (3)solar pump drive installation pictures (13)

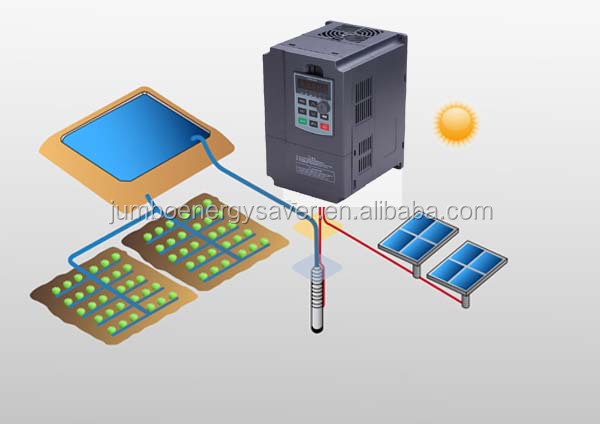

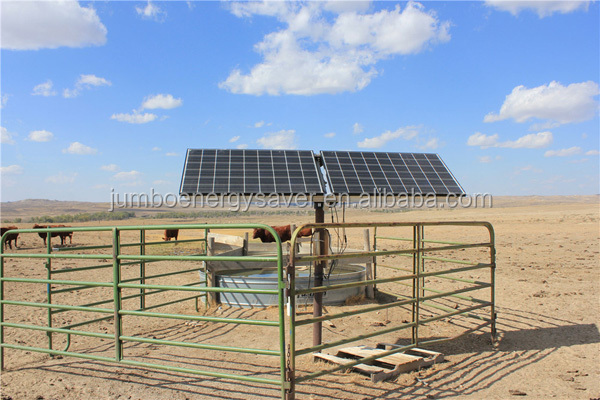

Application of Jumbo 3phase AC submersible solar pump inverter



spi300 solar pump drive (3)spi300 solar pump drive (9)

solar pump inverter referencessolar pump inverter references (4)solar pump inverter references (8)solar pump inverter references (18)



FAQs of Jumbo 3phase AC submersible solar pump inverter



1.Q: Are you a factory or trading company?

A: We are manufacturer.



2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhen City, China. We will send a car to pick you up  when you visit China at the airport or train station.



3.Q:Have your products passed CE FCC ROHS such certifications?

A:All Jumbo 3phase AC submersible solar pump inverter  have passed such certifications.



4.Q:.It’s the Jumbo 3phase AC submersible solar pump inverter  easily to install?

A:Yes. You could Just Corresponding to the color of the wire connection.



5.Q: How can I get some samples?

A: We are ready to send you samples normally in three working days. You just need to pay the same cost as the quantity order, we will not charge you extra fee for samples.
