GPRS pump electricity saving box MPPT solar power inverter

FOB Reference Price:Get Latest Price
US $245-345 / Sets | 1 Set/Sets MPPT solar power inverter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Jumbo MPPT solar power inverter
Model Number:
SPI300-5K5GB-T4
Output Power:
5.5KW
Output Type:
Triple
Size:
247*160*178mm
Weight:
5KG
Input Voltage:
250 to 800VDC
Output Voltage:
380-440VAC
Type:
DC/AC Inverters
Output Frequency:
0~60HZ
Output Current:
13A
Product Name:
MPPT solar power inverter
Other Name:
electricity saving box MPPT
Application:
solar pumping system for irrigation
Color:
grey/white
Warranty:
18 Months
Display:
LCD Display
Module:
IGBT
MPPT Efficiency:
98%
Lifespan:
more than 10 years
Battery:
no need
Supply Ability
Supply Ability:
2000 Set/Sets per Month electricity saving box MPPT
Packaging & Delivery
Packaging Details
package of Jumbo pump electricity saving box
1.pearl wool inside to protection solar pump inverter
2.wooden case or paper box according to the weight
Port
shenzhen
Lead Time :
3 to 25 working days according to the order quantity

Jumbo GPRS pump electricity saving box MPPT solar power inverter



What is Jumbo pump electricity saving box

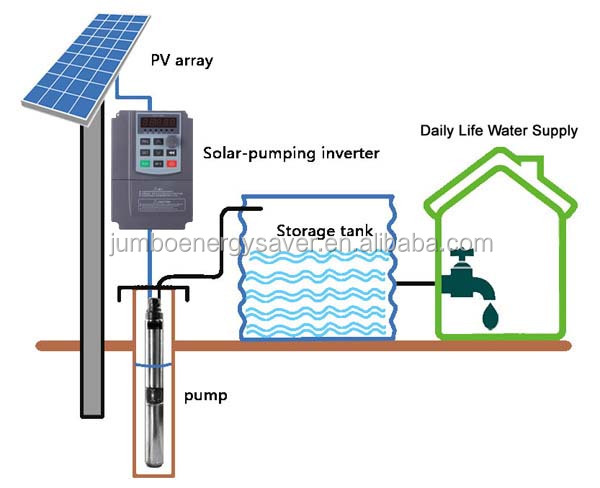

Solar pumping system is composed by one pump, a power -matched solar array and Jumbo electricity saving box MPPT

Jumbo solar pump inverter is the drive for pumps,it converts the DC solar power into AC power for the pumping system. Jumbo MPPT solar power inverter can be applied to daily use (ground water), agricultural irrigation, forestry irrigation, desert control, pasture animal husbandry, water supply for islands, wastewater treatment engineering, and so on.



Features of Jumbo electricity saving box MPPT



•High quality components, perfecting system performance with maximum conversion efficiency

•Ultra-fast tracking speed and guaranteed tracking efficiency up to 98%

•Accurately recognizing and tracking of multiple power points

•Reliable automatic limit function of maximum PV input power, ensuring no overload under any circumstance

•12/24VDC automatically identifying system voltage

•LCD panel display design, dynamically displaying tool’s operating data and working condition

•With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations for Jumbo electricity saving box MPPT



Protection functions for Jumbo  MPPT solar power inverter



Over charge protection

Deep discharge protection for Jumbo

Reverse polarity protection of load, module and battery

Open circuit protection without battery

Reverse current protection at night

Over temperature and overload protection

Automatic electronic fuse

Short circuit protection at module input for Jumbo electricity saving box MPPT

Over voltage protection at module input

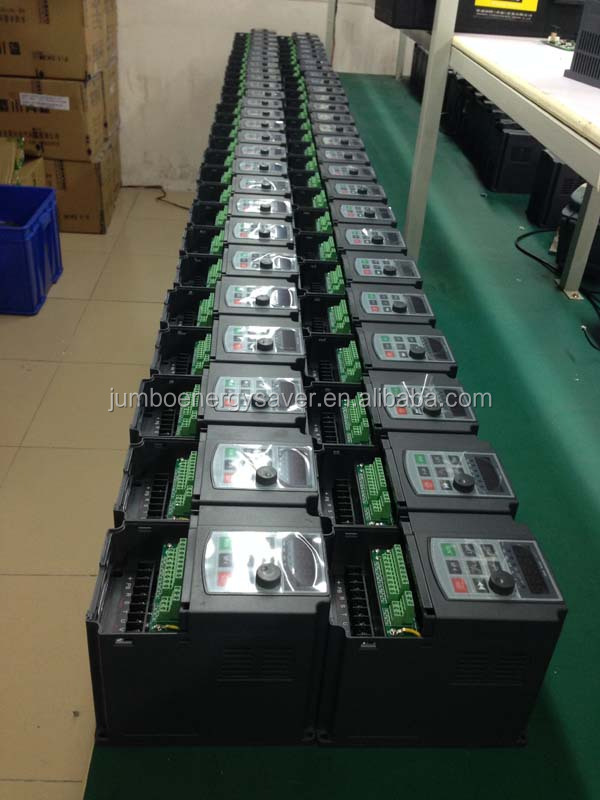

Production details of Jumbo MPPT solar power inverter



Sample order in 5 working days

Bulk order in 15 to 25 working days

OEM order is welcome, MOQ 100 units

dolar pump inverter production (2)

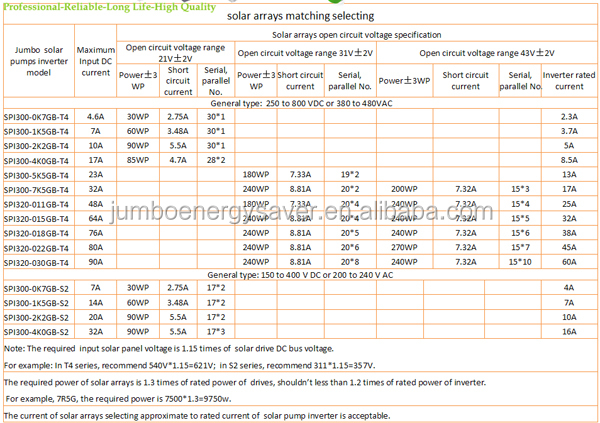

How to choose solar panel array and Jumbo pump electricity saving box



Firstly, take a short view about the pictures below,then you will understand how to choose the right solar array according to the power of Jumbo MPPT solar power inverter

Or if you still have doubt on it,you are welcome to contact us for more technical support.

how to choose solar panles 1



Advantages of Jumbo MPPT solar power inverter



A simple picture below will give you full description for the advantages of Jumbo electricity saving box MPPT

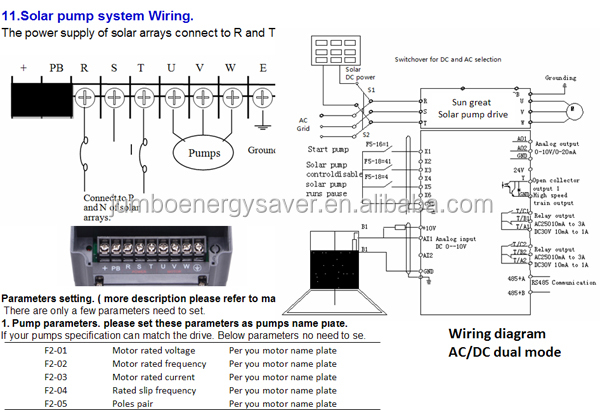

Wire connection of Jumbo pump electricity saving box



According to the pictures below,we learned that the wire connection for Jumbo MPPT solar power inverter is quite easy.

If for DC solar array input,then connect the “+” and “-”with PB.

If it is single phase AC input,then connect the live phase and neutral phase with any two phases of R/S/T.

If it is three phase AC input,the use three live phase wires to connect the R/S/T.

U/V/W is used to connect the wires of the pump

solar pump drive installation pictures (12)

spi300 solar pump drive (3)

solar pump inverter installation picture 18



Application of Jumbo MPPT solar power inverter



Jumbo pump electricity saving box improves the reliability of pumping device, at the same time, it lowers the construction and maintenance costs of the irrigation system dramatically.

When the sunlight reaches its peak, Jumbo electricity saving box MPPT controls the pump and let it run at the rated speed, and the output approaches the peak power of the solar array; when the sunlight is less abundant, the speed of pump varies bellow the range of the rated speed; when the speed as low as the capacity becomes zero, the solar pumping system will be stopped automatically.

Recently, with the rapid promotion of the utilization of new energy resources, Jumbo MPPT solar power inverter is more and more widely used for municipal engineering, city centre squares, parks, tourist sites, resorts and hotels, the landscapes and fountain irrigation systems in the residential areas.



Jumbo GPRS pump electricity saving box MPPT solar power inverter
