Off-grid water pump solar panel inverter MPPT GPRS

FOB Reference Price:Get Latest Price
US $140-250 / Pieces | 1 Set/Sets pump solar panel inverter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Jumbo
Model Number:
SPI300-0K75GB-S2
Output Power:
500 - 1000W
Output Type:
Triple
Size:
185*125*159
Weight:
3.5KG
Input Voltage:
150V/400V
Output Voltage:
220V/240V
Type:
DC/AC Inverters
Output Frequency:
0~50HZ/0~60HZ
Output Current:
4A
Product name:
pump solar panel inverter
other name:
water pump solar panel inverter
Running mode:
MPPT or CVT
frequency:
0~50HZ/0~60HZ
life time:
10 years
color:
Gray-black/White
Applicable Pumps:
0.75KW
G.W:
4KG
package:
pearl wool and paper carton
MPPT efficiency:
97%
Supply Ability
Supply Ability:
2000 Set/Sets per Month water pump solar panel inverter
Packaging & Delivery
Packaging Details
packing of pump solar panel inverter MPPT
1.each Jumbo is packed inside of paper carton and protected by pearl wool.
2.every six sets or three sets of Jumbo are packed in one bigger carton.
Port
ShenZhen
Lead Time :
sample:7 days;quantity order:15 days

Off-grid water pump solar panel inverter MPPT GPRS

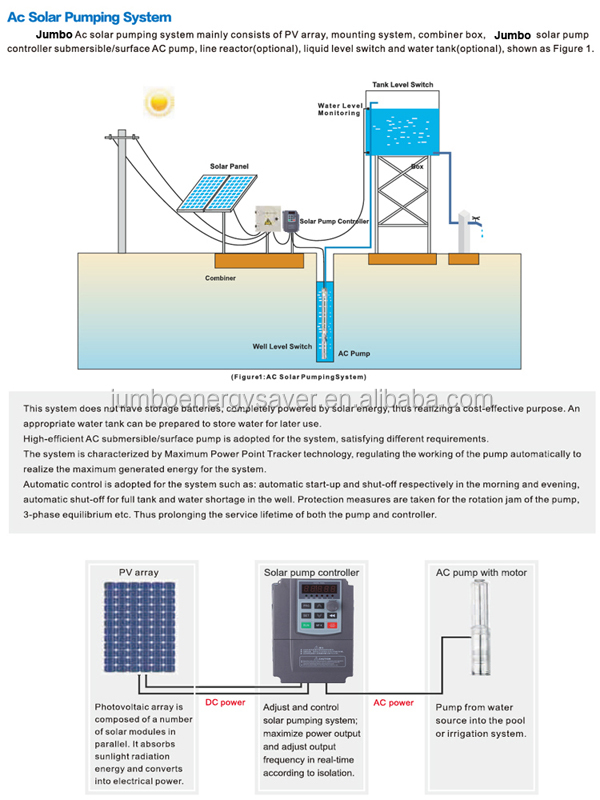

Introduction of Jumbo pump solar panel inverter



Jumbo pump solar panel inverter is more and more popular, it can be used for agriculture irrigation, forest irrigation, desert control, pasture animal husbandry, water supply for islands and waste water treatment engineering.



Jumbo pump solar panel inverter controls and adjusts the system operation and converts the DC produced by solar array into AC to drive the pump, and adjust the output frequency in real-time according to the variation of sunlight intensity to realize the maximum power point tracking( MPPT).



Jumbo pump solar panel inverter are widely used for various pump systems. It is used to draw water from the deep wells or rivers and lakes to the storage tank or reservoir, or directly be connected with the irrigation system, fountain system. According to the actual system demand and installation conditions, different types of pump such as centrifugal pump, axial flow pump, mixed-flow pump or deep-well pump can be used.



Main Features of Jumbo pump solar panel inverter



Low carbon economy

In-built MPPT with high efficiency

Pump specific protection

Remote monitoring

Best off grid solution

Perfect stable frequency output

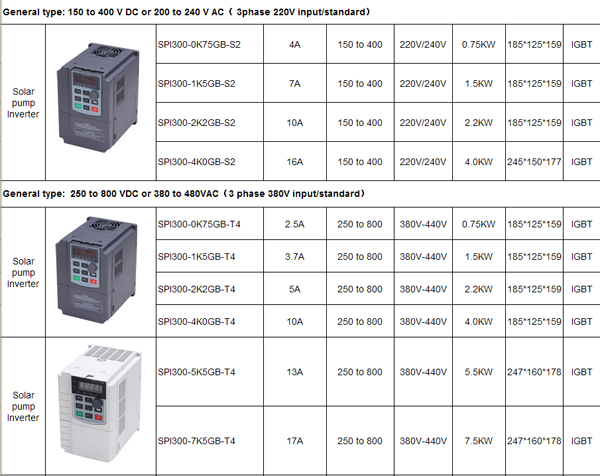

Technical Specification of Jumbo pump solar panel inverter





Why Choose Jumbo pump solar panel inverter ?



1. Modbus communication protocol, RS485 communication for Jumbo pump solar panel inverter

2. Simple PLC and multistage speed

3. Speed tracking function

4. Carrier frequency automatic adjustment

5. High quality with 18 months warranty

6. Controlling with open-loop, closed-loop control

7. Automatically identify the motor parameters, self-learning

8. Install PID, main spindle control for water pump of Jumbo pump solar panel inverter



Packing & Delivery of Jumbo water pump solar panel inverter



Packing Details: Jumbo water pump solar panel inverter : standard export packing, carton box or wooden box
Sample: 3 working days

Bulk Order: 15 to 30 working days according to customer's quantity

Delivery Detail: By sea 30 to 40 days/by air 7 to 15 days/by express 5 to 7 days for all Jumbo water pump solar panel inverter

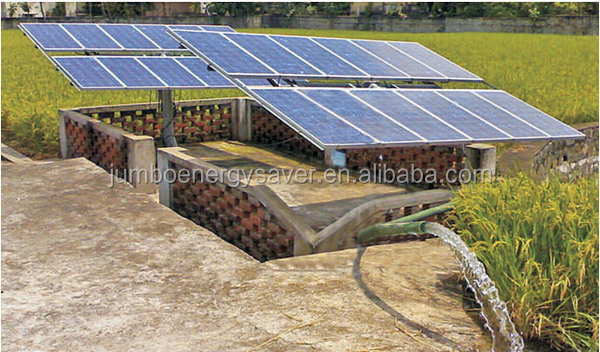

Installation Picture of Jumbo water pump solar panel inverter





Protection of Jumbo water pump solar panel inverter



Over charge protection

Deep discharge protection

Reverse polarity protection of load, module and battery

Automatic electronic fuse

Short circuit protection at module input

Over voltage protection at module input

Open circuit protection without battery

Reverse current protection at night

Over temperature and overload protection

Battery over voltage shutdown



Application of Jumbo pump solar panel inverter MPPT





FAQs for Jumbo pump solar panel inverter MPPT



1.Q: Are you a manufacturer or only a trader?
A: We are 100% real manufacturer in shenzhen city,China.



2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhen City, China. We will pick you up by car if you want to visit us while you are in shenzhen city.



3.Q: Can I purchase some samples of Jumbo pump solar panel inverter MPPT  before I put bulk order?

A: Sure,you can test our power saver products before we start the right cooperation.



4.Q:Can I have my own logo?

A:Yes,you can use your logo. And what we need your file for the logo design. But you need to spend 50USD for the sticker production. Then you have no need to spend a cent for all orders.



5.Q:Do you have CE for all of your power saver for Jumbo pump solar panel inverter MPPT ?

A:Yes, we have EMC and LVD testing report and certification for all Jumbo pump solar panel inverter MPPT .



6.Q: After Sales Service?

A: If u have any questions about the received product, we will try our best to solve it.







Off-grid water pump solar panel inverter MPPT GPRS
